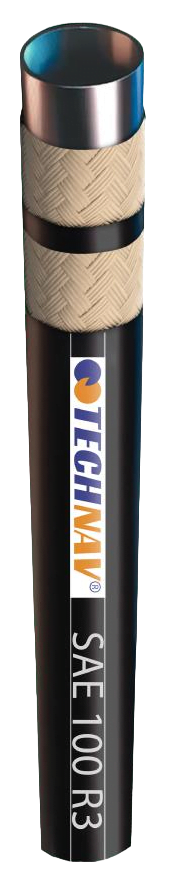

SAE 100 R3
TUBE: Oil resistant synthetic Rubber.
REINFORCEMENT: Double High Resistance Textile Braiding.
COVER: Oil, Weather and Abrasion resistant synthetic rubber.
APPLICABLE STANDARDS: SAE 100 R3, EN 854 R3.
TEMPERATURE RANGE: -40° C + 100° C.

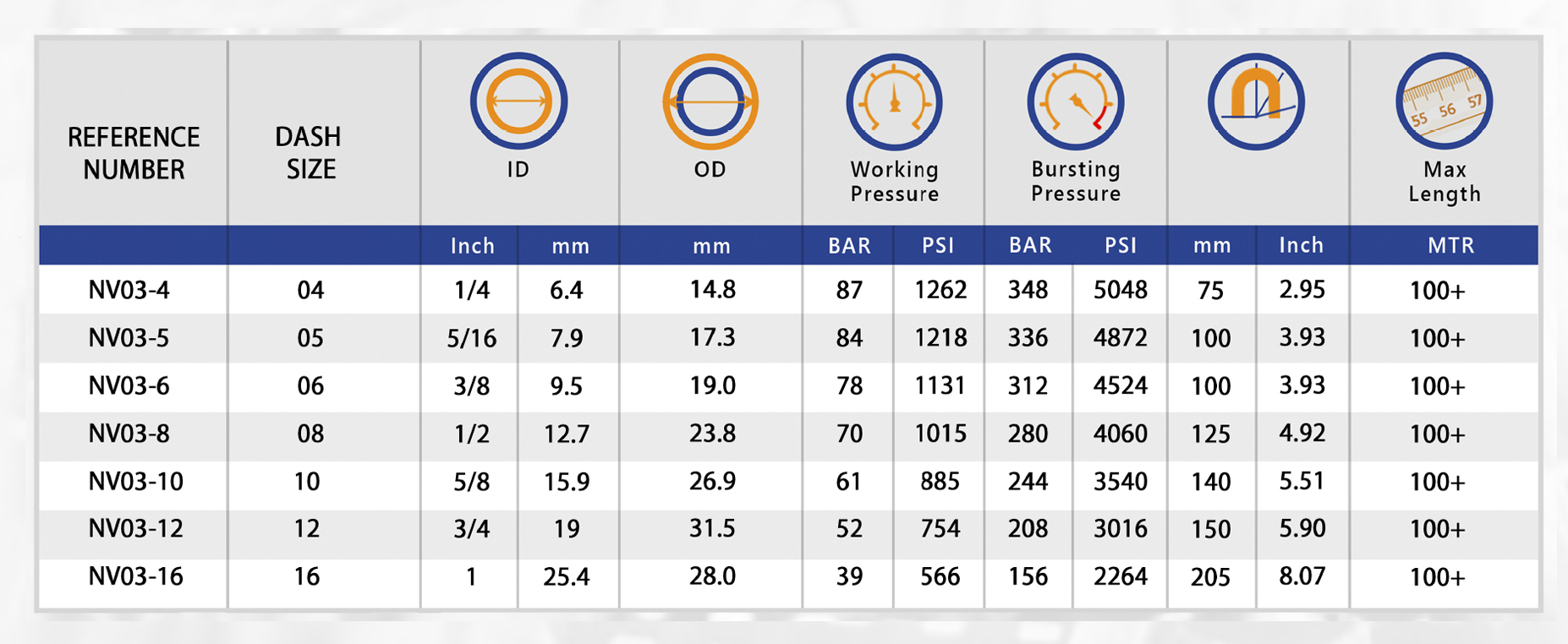

HOSE ID: 6.4 mm to 25.4 mm.
HOSE OD: 14.8 mm to 28 mm.
APPLICATIONS: SAE 100 R3 textile reinforced hydraulic hose has the ability to transmit petroleum or water-based hydraulic fluids. It is primarily used in low-pressure environments, and is also used in pneumatic applications.
BRANDING: TECHNAV SAE100 R3 with ID, Working Pressure and Manufacturing date.
